C2800M8
Technical Specification
| Power | 4 x 1.5 AA Batteries |
| Operations | 30.000 Openings |
| Low battery | When log signals "Low Battery" there will be 60 additional openings |
| RFID frequency | 13.56MHz |
| Reading distance | 10 to 25mm (0.39" to 0.98") |
| Material | Stainless Steel |
| Door Thickness | 12mm (0.47") up to 22mm (0.87") |
| Temperature range | -10~55°C (14~131°F) |

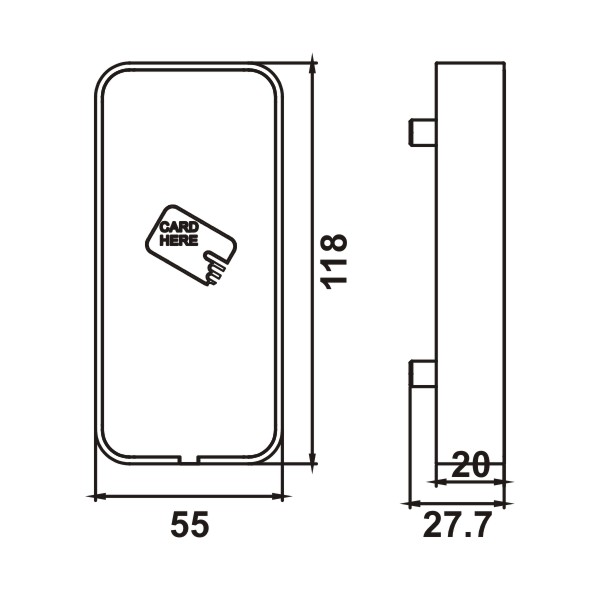

| Dimensions (H x W x D) | Front body : 118 x 55 x 27.7 mm |
| Finish | Silver, Matte Black |
| Accessories Available | RFID Card, Override Battery Case |
| Card keys | Cyber II RFID has 4 key levels : Owner Key, Master Key, Service Key and User Key. |
| Nett Weight | 370g |
| Gross Weight | 415g (1 lock/box) |
| Packing | 10 boxes/ctn. (20 locks/ctn) |
| Carton Size | 425mm x 265mm x 175mm |
Card Keys
Available to create master cards, to manage all lockers in the property.
| Owner Card | 1 |
| Master Card | 1 |
| Service Card | 12 Keys |
| User Card | 1 Key |
Functions
Shared Use
The user can select any free locker. Once occupied, the locker can only be opened by that specific card. Even thought the card is not locker specific, it can only be used in one locker at a time.
Assigned Use
The user can open the same number of locker as guest room number, it can only be used in the specific locker while guest keycard is still valid throughtout the guest's stay.
