G1A8M

GUARDIAN RFID (G1 Series)

Electronic Hotel Lock

Be-Tech GUARDIAN RFID G1 Series is the luxury version of GUARDIAN RFID G0 Series, and offers a better looking of outside escutcheon and handles for hotel choice.

Be-Tech GUARDIAN RFID G1 Series offers the same performance as GUARDIAN RFID G0 Series but with whole series international certifications to enhance guest's confidence.

Be-Tech GUARDIAN RFID G1 Series is equipped with the most flexible platform for future All-in-one card applications.

G1A8M

Features :

  • Stand alone electronic lock with RFID technology.
  • Fire Listed for usage on fire doors (EN).
  • High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
  • Die-Casting handle with long lasting painting finish.
  • 3-point stainless steel latch construction with antifriction mechanism.
  • Mortise equipped 20mm throw high strength deadbolt.
  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
  • ADA compliant (guest with physical disabilities).
  • Future proof re-programmable FLASH RAM lock memory.
  • Powered by four AA batteries that provide up to 1 year normal life time.
  • 414 events audit trail.
  • Compatible with BIS HOTEL software platform.
  • High security mechanical override cylinder available.
  • Optional No.36 stainless steel handle.
  • Compatible hotel function and residential function.

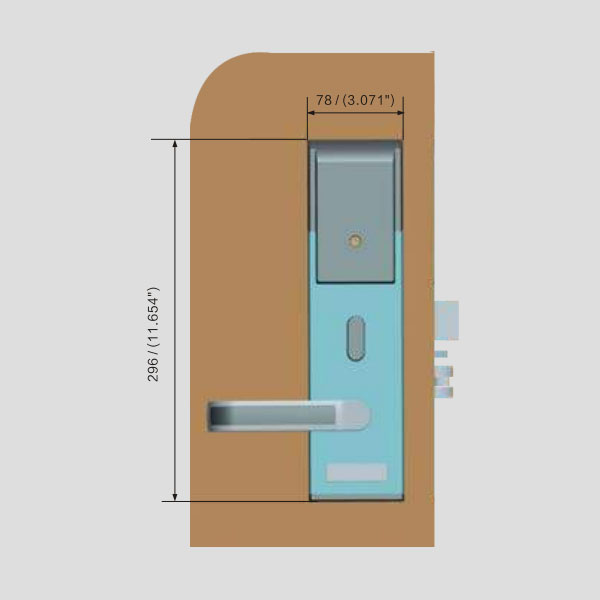

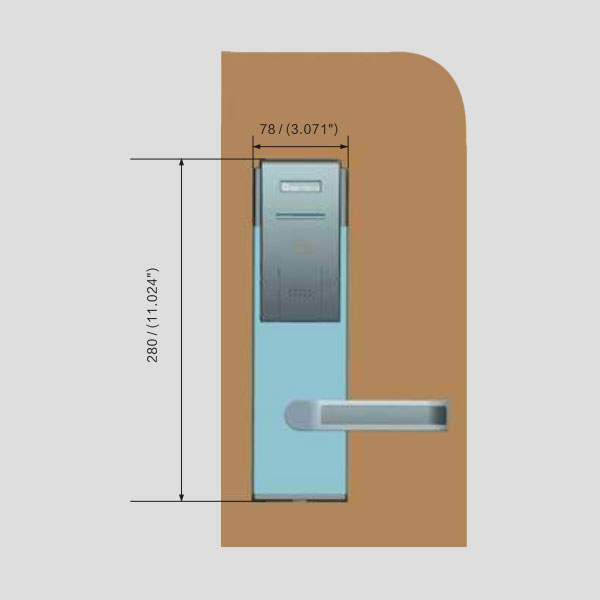

Dimensions :

G1A8M
G1A8M
G1A8M

Technical Data :

Power 4 x 1.5 AA alkaline Batteries
Battery Location Inside of the back lock
Material Handles: Stainless steel quality SUS304
Lock body: Stainless steel quality SUS304
Metal Finishes Silver, Gold, Matte Black
Emergency Opening Options Emergency Opening with Mechanical
cylinder
Locking Mechanism Electro-mechanical locking mechanism
Door Thickness 35-80mm (only for EURO mortise)
System Software Compatibility BIS Hotel
Storage Temperature Workable -20 ̊C~60 ̊C: non-condensing
environment
Tested Operating Temperature Tested from -25 ̊C~70 ̊C
Certifications Approved according to EN14846.
Fire approved according to EN 1634-1
Fire approved according to UL(timber doors)
Supported RFID Standard ISO 14443 A (MIFARE Classic)

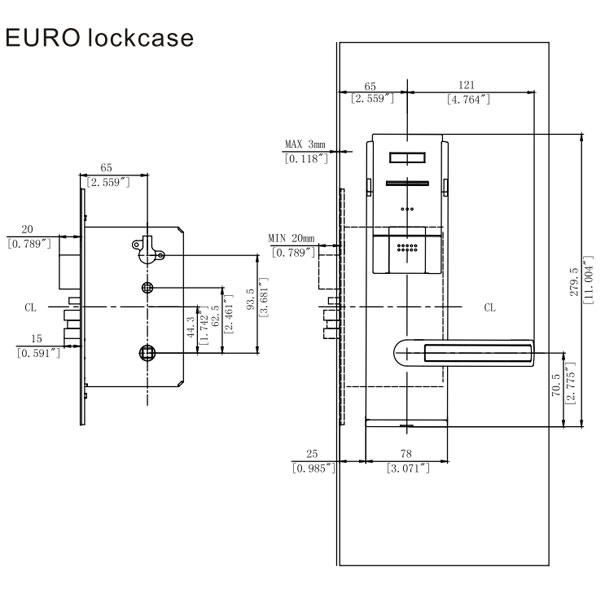

Lockcase Dimensions :

ANSI Lock Case Variants ANSI DAs
ANSI Lock Case Widths 28mm / 1.10 inches
31.5mm / 1.24 inches
ANSI Backset 70mm / 2.76 inches
EURO Lock Case Variants EURO DA, available in :
Australia version(AUS)
Japan version(JPN)
EURO Lock Case Widths 22mm / 0.87 inches
EURO Backsets 65mm / 2.56 inches
